Chamber Filter Plate

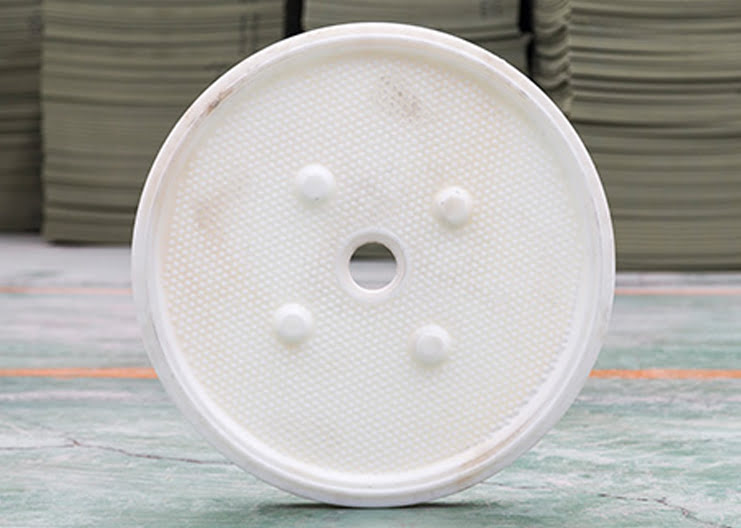

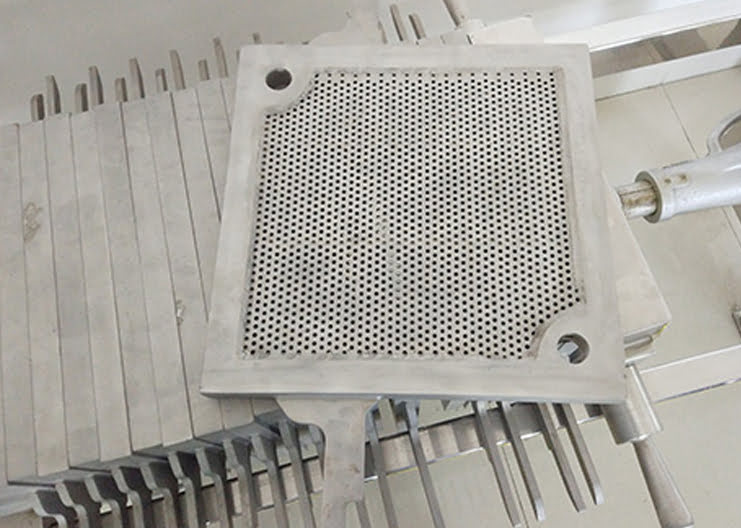

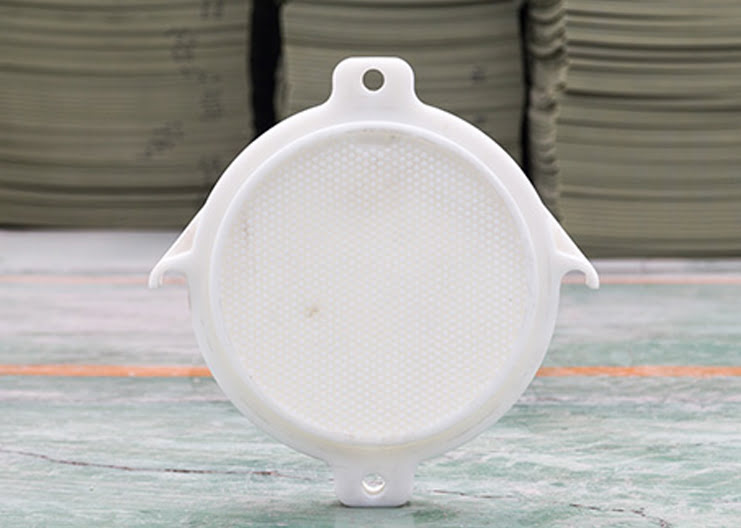

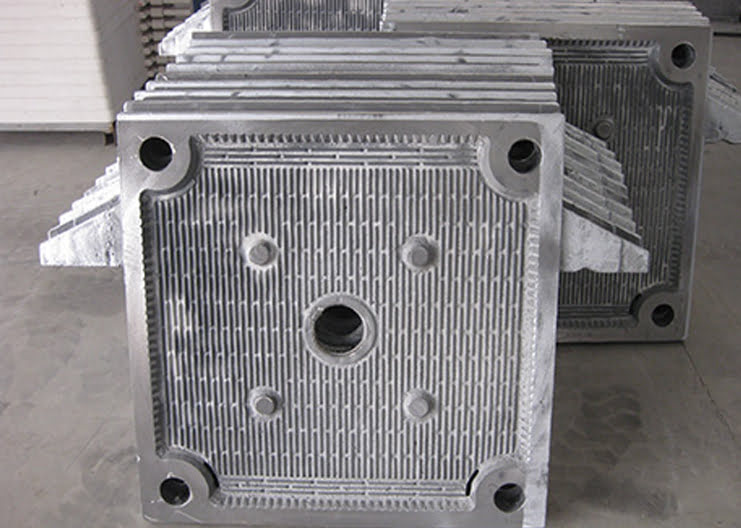

Our plates includes chamber/recessed plate, membrane plate, plate and frame type, CGR plate, high temperature plate, high pressure plate, round plate, cast iron plate, stainless steel plate, plate for cotton cake filter press etc. They are suitable to various work conditions in mining, effluent treatment, chemical industry, oil extraction, ceramic, food & beverage, gelatin etc. The plate material can be RPP, glass fiber reinforced PP, cast iron, stainless steel etc. Our plates have advantages of wide range of adaptation, good corrosion resistance, wearing resisting, long service life etc.
Common filter plate size
Multi-size filter plate can be selected,Customized model and product are available
450*450mm 630*630mm 800*800mm 870*870mm 1000*1000mm 1250*1250mm 1500*1500mm 2000*2000mm
The recessed chamber filter plate made from polypropylene is a development of the plate and frame filter plate and has the same functionality.
The chamber plate frame is however integrated within the chamber filter plate thus significantly enhancing the plate's stability. This enables chamber filter plates to be used at much higher filtration pressure levels. Optional cake and plate thicknesses are available depending on the specific filtration conditions and application.
Description
Products Advantages
1. Single element and therefore cheaper than separate plates and frames
2. Filtration pressures of up to 30 bar
3. Suitable for high filtration temperatures
4. Robust design with reinforced edges
5. The recessed filter has a special pipped surface to protect the filter cloth and ensure excellent filtration
6. Chamber plates are moulded with pressing forces up to 4000 tons and 160℃mold temperature, which is unique for this kind of moulding technique. These processing conditions maintain the high physical property profile of our materials of construction.
7. High-temperature resistance, high pressure, anti-corrosion, and good sealing performance.
8. High-pressure filtration, lower material moisture content.
9. The filtering speed is fast, and the filter cake is washed evenly.
Applications
Sludge dewatering for wastewater treatment, Food Industry, Chemicals, Mining, Medicine, Ceramic slurry, etc.
Technical Data
Format | Standard sizes: 250mm—2500mm, Larger and alternative formats available upon request. |
Feed eye position | Standard feeds: Centralised feed, decentralised feed, corner feed, external feed, position eye In general, any feed eye design is possible and can be made according to customer requirements. |
Pressure | Standard products are suitable for a maximum filtration pressure of 8 or 16 bar depending on the product. Special products for pressure levels of 30 bar are available. |
Temperatures | -15℃—105℃ |
Materials | Chamber filter plates are available in the following materials according to intended use: Polypropylene PVDF Alkaline-free glass fiber Other materials available on request |
| Typical applications | 1) Chemical industry; 2) Municipal sewage, industrial waste water treatment and potable water; 3) Metal refining; 4) Mining industry, ore concentrates and tailings; 5) Minerals processing; 6) New energy battery materials; 7) Food & brewing; 8) Edible oil bleaching and fractionation; 9) Sugar; 10) Pharmaceutical; 11) Sand and aggregates; 12) Tunnel drilling and construction field sludge dewatering |
