Plate And Frame Filter Plate

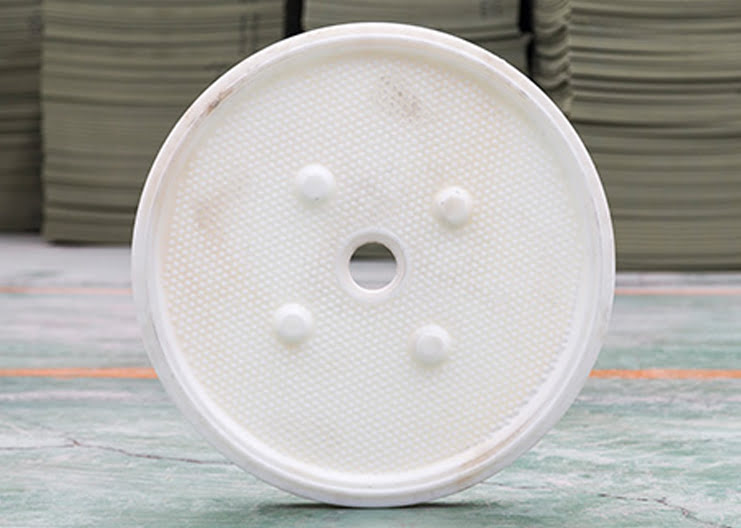

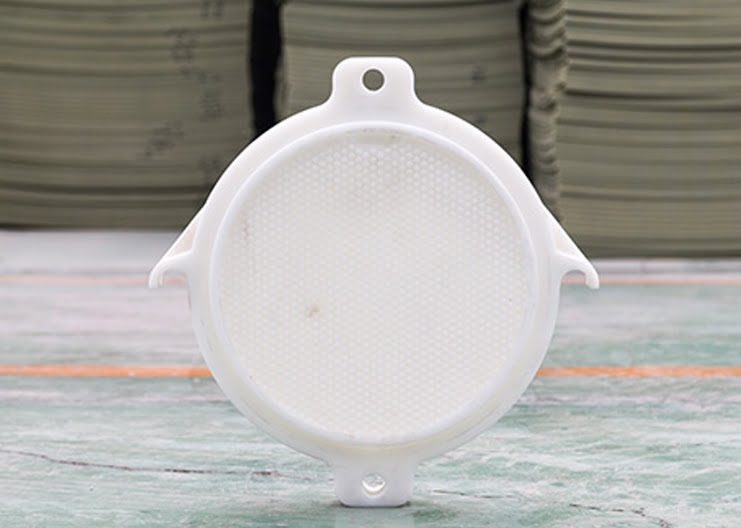

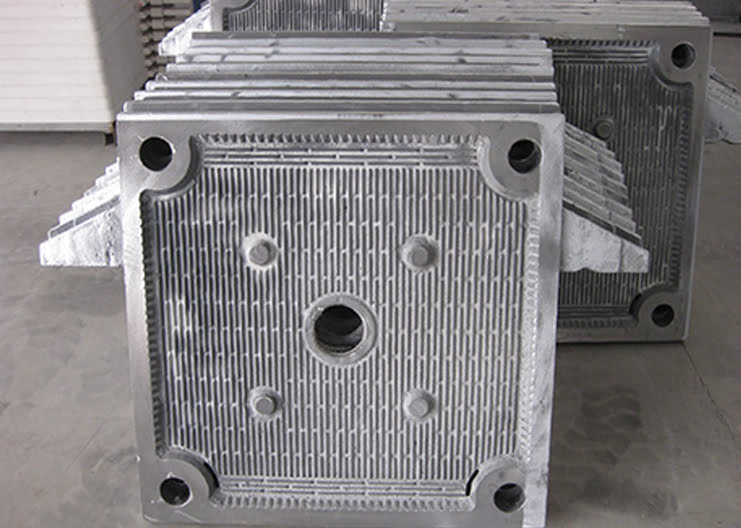

Our plates includes chamber/recessed plate, membrane plate, plate and frame, cloth gasket recessed plate, high temprature plate, high pressure plate, circular plate, cast iron plate, stainless steel plate, plate for cotton cake filter press etc. They are suitable to various work conditions in mining, effulent treatment, chemical industry, oil extraction, ceramic, food&beverage, gelatin etc. The plate material can be RPP, glass fiber reinforced PP, cast iron, stainless steel etc. Our plates have advantages of wide range of adaptation, good corrosion resistance, wearing resisting, long service life etc.
Common filter plate size
Multi-size filter plate can be selected,Customized model and product are available
450*450mm 630*630mm 800*800mm 870*870mm 1000*1000mm 1250*1250mm 1500*1500mm 2000*2000mm

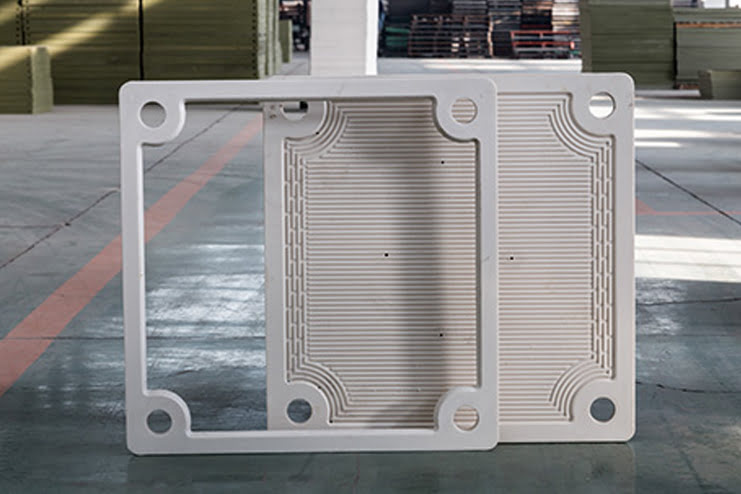

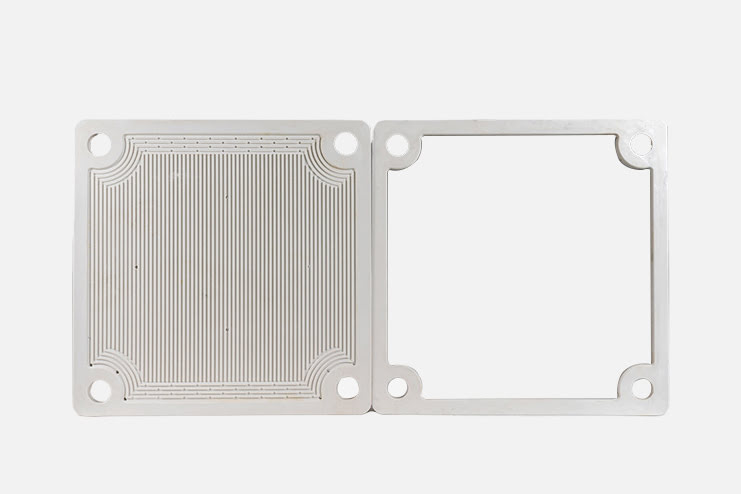

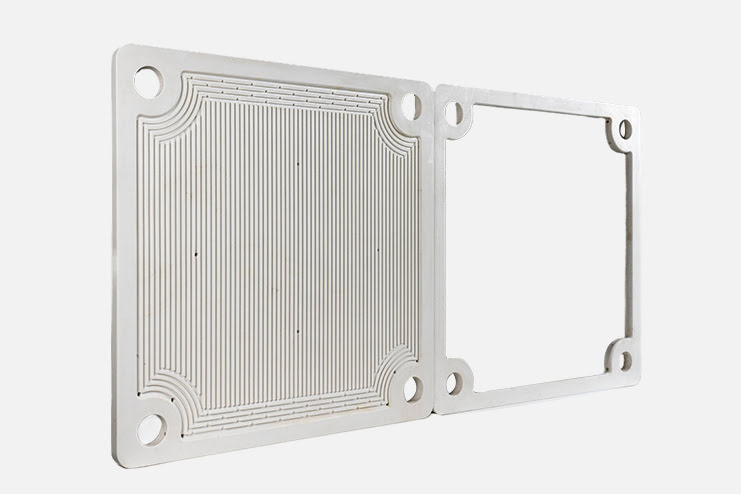

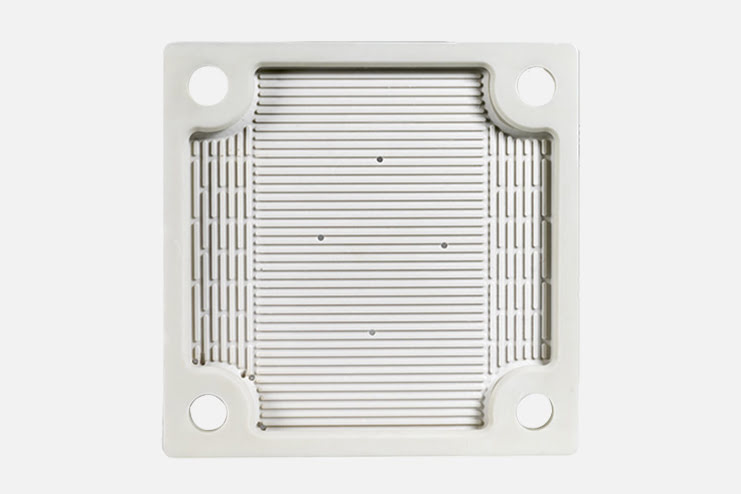

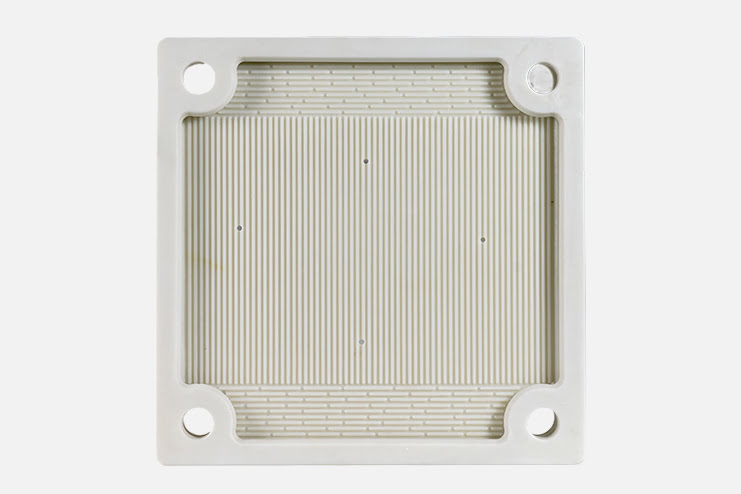

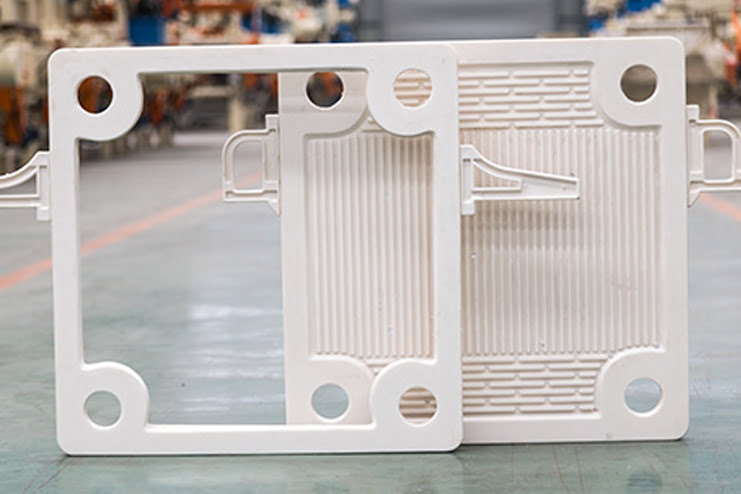

Plate and frame filter press includes plate and frame. There are PP, Cast Iron, Stainless steel plate for options for different materials. Compared to other filter press, it is the best choice for fine filtration, especially for edible oil. Filter cloth, filter sheet, filter paper are all can be used together with it.
Description
Products Advantages
1.Non-toxic and tasteless food grade.
2.Acid and alkali corrosion resistance, abrasion resistance, high-temperature resistance of 80-120 degrees (glass fiber filter plate high-temperature resistance), high-pressure resistance,
3.Impact resistance, low friction coefficient, sealing Good performance.
Versatility:
Plate and frame filter presses can be used in a wide range of industries and applications, They are capable of handling various types of slurries and achieving different levels of filtration efficiency.
Easy Maintenance:
Plate and frame filter presses are relatively easy to maintain.
Cost-Effective:
Filter presses offer long-term cost savings.
Applications
Sludge dewatering for wastewater treatment, Foodstuff, Chemicals, Mining, Medicine, Ceramic slurry, etc.
Technical Data
Format | Standard sizes: 320mm—1000mm, Larger and alternative formats available upon request. |
Feed eye position | Corner feed |
Pressure | Standard products are suitable for a maximum filtration pressure of 6 or 8 bar depending on the product. |
Temperatures | -5℃—90℃ |
Materials | Chamber filter plates are available in the following materials according to intended use: Polypropylene PVDF Alkaline-free glass fiber Other materials available on request |
| Typical applications | 1) Food & brewing, beverage; 2) Edible oil bleaching and fractionation; 3) Pharmaceutical, etc. |
